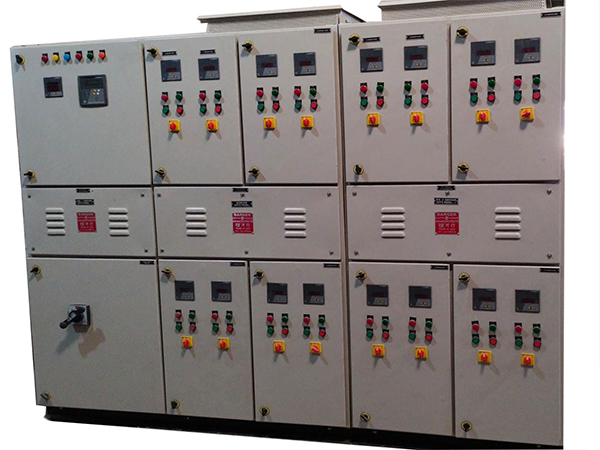

An APFC Panel (Automatic Power Factor Correction Panel) automatically improves power factor by intelligently switching capacitor banks in steps based on real-time load conditions. The microprocessor-based or intelligent controller continuously measures reactive power using CT inputs and voltage sensing, and then switches the required kvar steps to maintain the desired target power factor. Detuned reactors can be incorporated to prevent resonance and safeguard capacitors in harmonic-rich networks, ensuring longer life and system stability. Built to IEC 61439 design practices and equipped with IEC 60947 compliant switchgear, these panels guarantee safe, reliable, and efficient operation. By maintaining an optimal power factor, APFC Panels significantly reduce demand charges, lower distribution losses, release transformer capacity, and improve overall voltage stability. These panels are widely used in industries, commercial complexes, hospitals, IT parks, malls, and infrastructure projects where reactive power control is critical.
APFC Panel Key Feature
- Microprocessor PF controller with automatic step switching and alarms
- Fixed or detuned banks with series reactors to avoid resonance
- Modular kvar steps for scalable compensation
- MCCB or fuse switch protection with capacitor duty contactors
- Overvoltage, overtemperature and capacitor failure protections
- Copper or aluminum busbars with color coding and shrouding
- Optional RS 485 Modbus for remote monitoring
- IP31 to IP54 enclosure options and Form 2b or 3b segregation
- Clear labeling, ventilation design and safe earthing
APFC Panel Process
- Site survey, load profile and target PF definition
- Harmonic check and decision on detuned or plain capacitor banks
- kvar sizing, step configuration and bill of materials
- Enclosure fabrication and busbar work
- Capacitor, reactor, contactor and protection wiring
- Controller parameterization target PF, C/K, delays and alarms
- Routine testing, documentation and dispatch
- Installation assistance and commissioning with fine tuning
APFC Panel Industries
- Manufacturing plants, workshops and utilities
- Commercial buildings, malls and office parks
- Hospitals, universities and large campuses
- HVAC plants and cold storage facilities
- Textile, paper, plastics and packaging units
- Data centers and IT facilities
