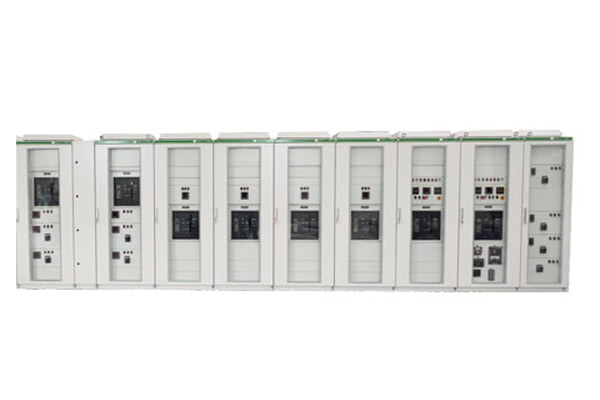

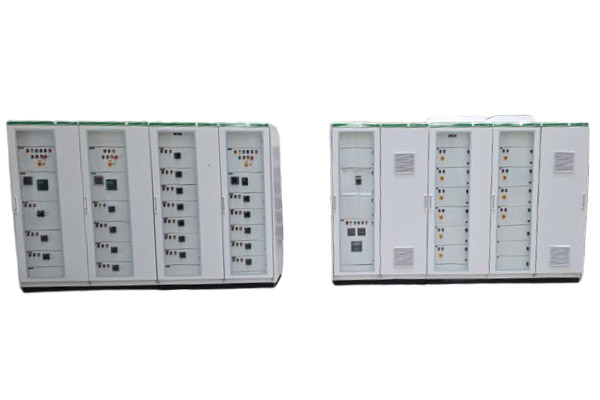

The PCC Panel (Power Control Center) is a low-voltage main power distribution assembly designed and built in accordance with IEC 61439. It safely distributes power to multiple feeders, provides protection, metering and control, and offers flexibility for future expansion. Typical configurations include single or dual incomers with a bus coupler, ACB/MCCB incomers, MCCB outgoing feeders, and provision for PQ meters and SCADA integration. Form of separation and ingress protection are selected as per site safety and maintenance needs. Robust CRCA enclosure, fully shrouded copper or aluminum busbars, and clear compartmentalization ensure reliability and safety. These panels are widely used in industrial plants, commercial complexes, and utilities where reliable power distribution is critical. Each system is custom-designed to meet client requirements while ensuring compliance with quality and safety standards.
PCC Panel Key Feature
- IEC 61439 compliant design with documented verification
- ACB or MCCB incomer; single/dual source with bus coupler and interlocks
- Form 1 to Form 4b segregation and IP31 to IP54 enclosure options
- High short-circuit withstand levels as per system fault study
- Copper or aluminum busbars with sleeves and phase color coding
- Multifunction metering, energy logging and optional PQ analyzer
- SCADA/BMS ready via Modbus RTU/TCP, Profibus or Profinet
- Top or bottom cable entry, ample cable space and robust earthing
- Clear labeling, nameplate schedule and maintenance-friendly layout
- Provision for spare feeders and future expansion
PCC Panel Process
- Requirement study, load analysis and short-circuit level assessment
- SLD and GA drawings, device selection and bill of materials finalization
- Enclosure fabrication, surface treatment and EMC/thermal planning
- Busbar sizing, drilling, supports and insulation (heat-shrink or sleeves)
- Mounting of breakers, meters and auxiliaries; power and control wiring with labeling
- Design verification and checklist as per IEC 61439 (dielectric, temperature rise, etc.)
PCC Panel Industries
- Manufacturing plants and process industries
- Power utilities and substations (LV side)
- Data centers and IT parks
- Hospitals, universities and large campuses
- Commercial complexes, malls and office parks
- Oil and gas, petrochemical and refinery utilities
- Airports, metros and public infrastructure
- Food and beverage, cold storage and HVAC plants
- Textiles, paper, steel and mining auxiliaries
