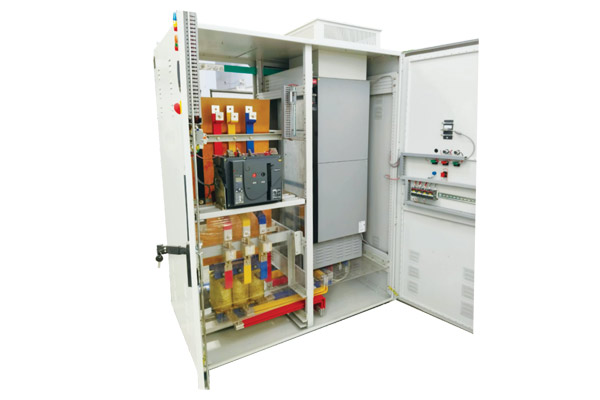

A VFD Panel controls motor speed in close loop control and Soft Starter current to improve process control, reduce energy consumption, and protect equipment. Variable Frequency Drives provide adjustable speed, torque control, PID regulation, and significant energy savings for variable-torque loads such as pumps, fans, blowers, and HVAC systems. Soft starters reduce inrush current using controlled voltage ramp and current limit, making them ideal for fixed-speed applications that require smooth acceleration and deceleration without mechanical stress. The assembly is designed as per IEC 61439 standards for LV switchgear, while power devices and protection components comply with IEC 60947 to ensure safety and reliability. Options include bypass contactor, braking chopper, EMC filters, dv/dt filters, line reactors, harmonic mitigation, and SCADA connectivity. These panels are widely used in industries such as water treatment, cement, steel, textiles, pharmaceuticals, and commercial buildings where energy efficiency and process accuracy are critical. With intelligent design and robust construction, VFD Panels help industries optimize performance, reduce downtime, extend equipment life, and achieve sustainable operations
VFD & Soft Starter Panel Key Feature
- VFD control for precise speed, torque, PID, multi-pump sequencing, and energy savings
- Soft starter ramp and current limit for smooth starts and reduced mechanical stress
- Protections: short circuit, overload, earth fault, phase loss, under/over voltage, over temperature
- Bypass contactor and emergency run provisions
- EMC compliance with shielded wiring, line reactors, RFI filters, and dv/dt filters where required
- Built-in features: jog, flying start, braking chopper option, sleep mode, inching and cost to stock fire mode for HVAC
- Communication: Modbus RTU or TCP, Profibus, Profinet, Ethernet/IP for SCADA or BMS
- IP31 to IP54 enclosure options, Form 2b or 3b segregation, copper or aluminum busbars
- Clear labeling, generous cable space, CT test links, and safe maintenance access
VFD & Soft Starter Panel Process
- Load study, duty profile, and application review
- Selection of VFD ratings, soft starter ratings, overload class, and protection scheme
- SLD and GA drawings, device layout, and thermal design
- Enclosure fabrication, busbar sizing, and heat management
- Power wiring, control wiring, shielding, and earthing practices
- Parameter setup for ramp times, PID loops, motor autotune, and safety interlocks
- Routine tests as per IEC 61439 and functional FAT with I/O simulation
VFD & Soft Starter Panel Industries
- Water and wastewater plants, booster pumps, lift stations
- HVAC systems, AHUs, cooling towers, and chilled water pumps
- Cement, steel, mining, and bulk material handling conveyors
- Oil and gas, chemical, and refinery utilities
- Food and beverage, packaging, and bottling lines
- Pharmaceuticals, cleanroom utilities, and process skids
- Textiles, paper, printing, and CNC machinery
- Commercial buildings, airports, and large campuses
